High Output 15 kg/batch Freeze Dryer with 70 mm Shelf Spacing and Touch Screen Operation for Industrial Lyophilization

High Output 15 kg/batch Freeze Dryer with 70 mm Shelf Spacing and Touch Screen Operation for Industrial Lyophilization

Marchio:	LTPM China
Numero di modello:	LTDG-serie
MOQ:	1 set
prezzo:	Negoziabile
Condizioni di pagamento:	L/C,T/T
Capacità di approvvigionamento:	15 set/mese

Informazione dettagliata

Descrizione del prodotto

Informazione dettagliata

Luogo di origine:

Cina

Certificazione:

Peso:

1200 kgs

Nome dell'articolo:

Liofilizzatore

Area asciutta:

1,08 metri quadri

Tray Area:

1,02 metri quadri

Il volume totale di disidratazione:

15 kg/batch

gioco dello scaffale:

70 mm

Modalità riscaldamento:

Modalità di conduzione

Sistema operativo:

Schermo tattile

Imballaggi particolari:

Custodia in legno standard per esportazione

Capacità di alimentazione:

15 set/mese

Evidenziare:

15 kg/batch Freeze Dryer

70 mm shelf spacing Lyophilizer

Touch Screen Operation Vacuum Freeze Drying Machine

Descrizione del prodotto

High Output Industrial Lyophilizer for Coffee, Milk Candy, and Ice Cream Production

This food-grade vacuum freeze dryer is a high-efficiency industrial drying solution for food processing, suitable for fruits, vegetables, meat, seafood, snacks, and health products. It adopts advanced low-temperature sublimation technology to maintain original nutrition, color, flavor and rehydration rate, with long shelf life and stable quality. Made of food-safe stainless steel, it meets international food safety and hygiene standards, featuring easy operation, low energy consumption, and reliable performance. Ideal for small-batch production and large-scale industrial manufacturing, it is widely exported to global markets and trusted by food manufacturers worldwide.

Key Features

Global Adaptable Industrial Configuration: Designed with three-phase five-wire power supply (415V/50HZ for main machine, 380V/50HZ for frozen library) and adaptive cooling water pressure/flow parameters, matching industrial power and water supply standards of most countries and regions.
Multi-industry Versatile Freeze-drying Solution: Ideal for food processing (tropical fruits, aquatic products, instant food), pharmaceutical & biotech (vaccines, microbial agents, biological specimens), and high-end health products (bee products, Chinese herbal medicine).
GMP/FDA/EU Compliant for Global Certification: Fully in line with CGMP design norms with electronic signature and data traceability functions, meeting FDA and EU quality standards for international product certification.
Low-cost High-efficiency Global After-sales Service: 7 professional technicians available for on-site global dispatch, 24/7 online technical support with remote video fault diagnosis, ensuring fast response and transparent service costs.
Energy-saving & High-yield for Global Cost Reduction: Equipped with stepless energy adjustment compressor and PID precision temperature control system, reducing energy consumption by 20%-30% compared to traditional equipment. Large-capacity shelf (110.16㎡) enables high-speed freeze-drying for large-batch continuous production.

Technical Specifications

Power	167Kw, 380V±10%, 50HZ, 3 Phase, 5 Wire
Vacuum Function	19.8kw
Refrigeration Function	92kw
Heating Function	55.5kw
Compressed Air	≥40L/min (P=0.5~0.8Mpa)
Cooling Water Quantity	≥50m³/h (T≤30℃, P=0.2-0.3Mpa)
Defrost Water Quantity	≥4000kg (T≥30℃, P=0.1-0.2Mpa)
Whole Volume	Dry chamber and Condenser: D=φ2100mm L=6650mm Freeze system vacuum system control system: L=2600mm W=2200mm H=2000mm Final dimension based on design
Structure	Split
Total Weight	15T (Approx.)

Machine Details

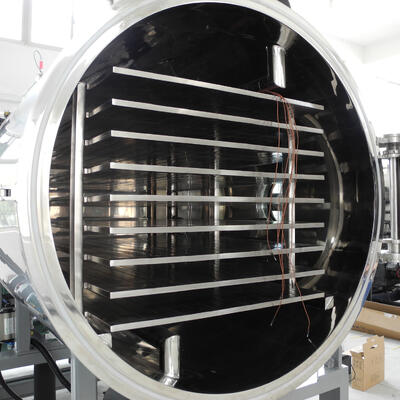

Chamber: Cabinet, board level, and hose are tested after multiple procedures to ensure without leakage.

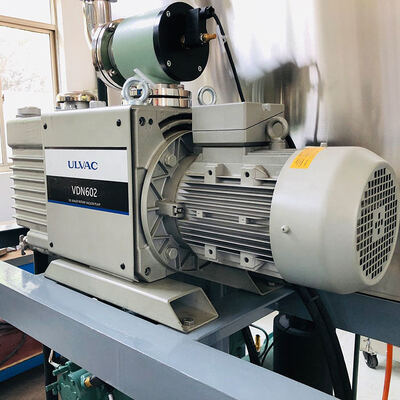

Vacuum System: Uses rotary vane vacuum pump + roots pump unit for larger pumping speed and higher efficiency.

Condense Pipes: Argon welding forms internal and external connections to ensure clean pipes without leaks.

Shelves: Through dedicated machining, shelves guarantee high demand flatness for optimal performance.
