Name: Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine
Brand: Leadtop Pharmaceutical Machinery
SKU: Serie LTRG
Price: 32,505.00 USD
Availability: InStock

Casa > prodotti > Materiale da otturazione automatico della metropolitana e macchina di sigillatura >

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine

automatic tube filling machine for cosmetics

plastic tube sealing machine for creams

automatic ointment tube filling machine

Luogo di origine:

Cina

Marca:

LTPM China

Certificazione:

Numero di modello:

Serie LTRG

Contattici

Richieda una citazione

Dettagli del prodotto

Grado automatico:

Automatico

Voltaggio:

380(220) V/50Hz

Materiale:

SUS 304/316L

Capacità produttiva:

25-40 pc /min

Motore:

1,5 kW

Altezza del tubo:

50-250 mm

Peso:

300 kg

Dimensione (l*w*h):

1500*700*1800mm

PRODOTTI RELATIVI

Video

Chinese Manufacturer Automatic Tube Filling Sealing for Toothpaste Plastic Tube Tube Filling Machine

Ottenga il migliore prezzo

Video

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine

Ottenga il migliore prezzo

Video

Cream Packaging Tabletop Aluminum Tube Filling and Sealing Semi Automatic Tube Filling Machine

Ottenga il migliore prezzo

Video

Best Quality CE Approved High Speed New Design Hot Selling Automatic Soft Tube Filling and Sealing Tube Filling Machine

Ottenga il migliore prezzo

Contattici

86-0577-65158955

info@chinaleadtop.com

86-0577-65158944

Contatto ora

Descrizione del prodotto

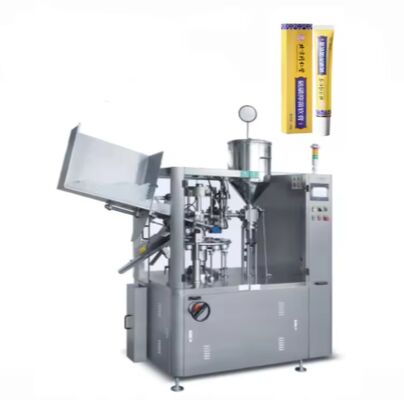

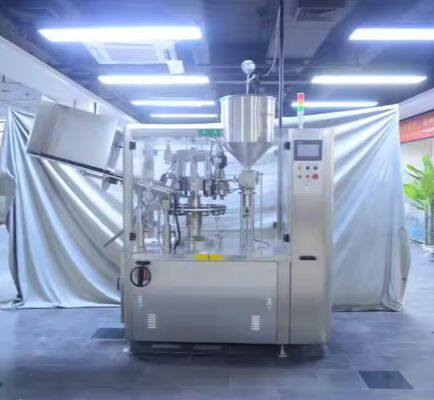

Introduction

This product uses a programmable logic controller (PLC) to program the entire machine, fully automating all processes, from filling and sealing liquids to high-viscosity fluids (pastes) to batch number coding (including the production date). It is ideal for filling and sealing aluminum, plastic, and composite tubes in the cosmetics, pharmaceutical, food, and adhesive industries, and complies with GMP regulations.

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine 0

Main features & functions

Key Features:

1) A high-quality LCD display and programmable controller with push-button operation screen provides comprehensive visibility into the machine's operating status, including stepless speed regulation, parameter settings, production statistics, air pressure indication, and fault display, ensuring simple and user-friendly operation.

2) The entire process, including tube feeding, calibration, inert temperature gauge charging (optional), filling, sealing, coding, and finished product export, is fully automated.

3) A high-precision calibration system minimizes color variations between the tube and the color scale.

4) External adjustment points and digital position display ensure quick and accurate adjustments (suitable for production of multiple specifications and varieties).

5) Integrated mechanical, optical, electrical, and pneumatic systems ensure no filling without tubes, automatic display (alarm) for incomplete tube feeding, low air pressure, and automatic shutdown when the protective door is opened.

6) The equipment guarantees a qualified product rate of over 99.5%, unless the scrap rate is due to problems with the customer's tube material.

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine 1

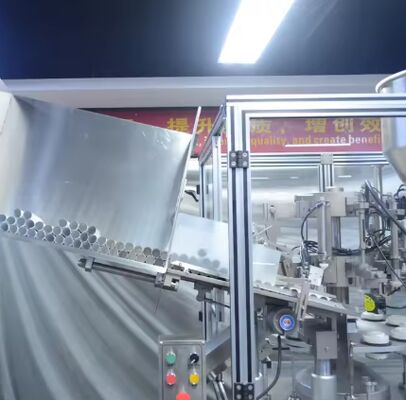

Hose hopper

Used to collect and store hoses waiting for use.

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine 2

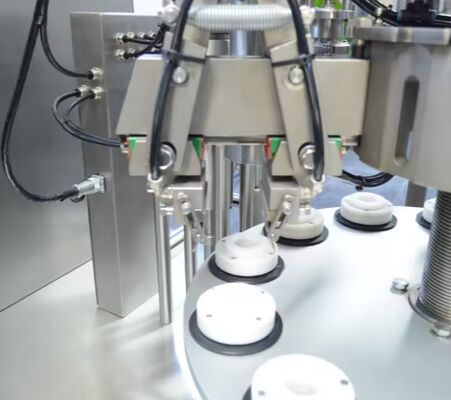

Hose feeder

The robot removes the hose and fixes it to the base.

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine 3

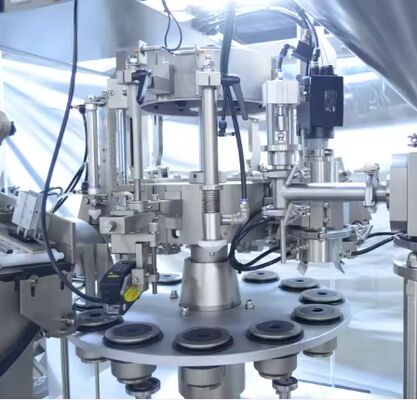

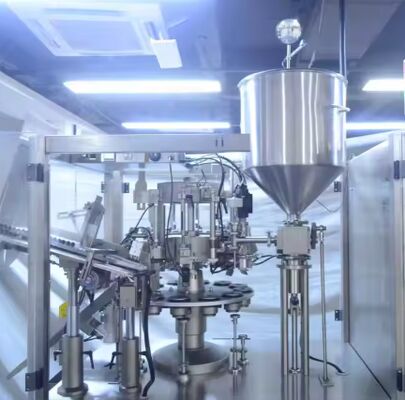

Filling Part

The filling head quantitatively extracts the emulsion and fills it into the hose.

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine 4

Siemens touch screen

Adopt Siemens touch screen, easy to operate, multiple languages available, stable quality. Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine 5

Hose sealing part

Seal the bottom of the filled hose to achieve a beautiful effect and prevent leakage.
