Name: Factory Custom Cream Glue Automatic Metal Aluminum Soft Tube Filling Sealing Tube Filling Machine
Brand: Leadtop Pharmaceutical Machinery
SKU: Serie LTRG
Price: 32,505.00 USD
Availability: InStock

Casa > prodotti > Materiale da otturazione automatico della metropolitana e macchina di sigillatura >

Factory Custom Cream Glue Automatic Metal Aluminum Soft Tube Filling Sealing Tube Filling Machine

automatic tube filling sealing machine

aluminum tube filling machine

cream glue tube sealing machine

Luogo di origine:

Cina

Marca:

LTPM China

Certificazione:

Numero di modello:

Serie LTRG

Contattici

Richieda una citazione

Dettagli del prodotto

Grado automatico:

Automatico

Voltaggio:

380(220) V/50Hz

Materiale:

SUS 304/316L

Capacità produttiva:

25-40 pc /min

Motore:

1,5 kW

Altezza del tubo:

50-250 mm

Peso:

300 kg

Dimensione (l*w*h):

1500*700*1800mm

PRODOTTI RELATIVI

Video

Chinese Manufacturer Automatic Tube Filling Sealing for Toothpaste Plastic Tube Tube Filling Machine

Ottenga il migliore prezzo

Video

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine

Ottenga il migliore prezzo

Video

Cream Packaging Tabletop Aluminum Tube Filling and Sealing Semi Automatic Tube Filling Machine

Ottenga il migliore prezzo

Video

Best Quality CE Approved High Speed New Design Hot Selling Automatic Soft Tube Filling and Sealing Tube Filling Machine

Ottenga il migliore prezzo

Contattici

86-0577-65158955

info@chinaleadtop.com

86-0577-65158944

Contatto ora

Descrizione del prodotto

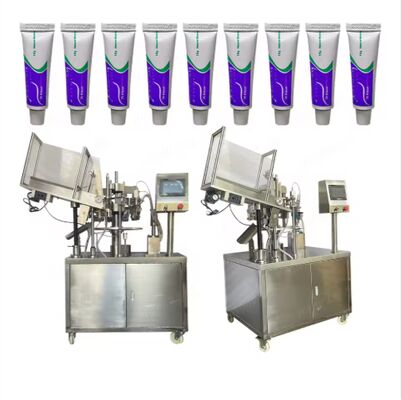

Automatic Tube Filling Sealing Machine is suitable for plastic tube and laminated tube filling and sealing, widely used in daily chemical products, food, chemicals, cosmetics, toothpaste, and so on industries.

Feature Highlights

The LTPMCHINA Automatic Tube Filling Sealing Machine is a versatile solution for industries like cosmetics, food, and chemicals. It supports multiple filling materials such as cream, gel, paste, and more, with adjustable filling volumes (5-25ml, 15-150ml, 30-200ml). The machine features a PLC control system, touch screen operation, and a filling accuracy of ±1%g. Built with 316L stainless steel for hygiene, it meets GMP standards. Equipped with CE certification, ensuring compliance with EU safety regulations and enabling market access. Additional highlights include automatic functions, IoT compatibility, and remote monitoring.

Supplier Highlights

This supplier is both a manufacturer and trader, exporting mainly to the United States, Bulgaria, and Mexico with a positive review rate of 97.2%.

Machine advantages

1. Touch screen and PLC control system, simple operation, intuitive and convenient, complete functions, stable operation;

2. The transmission part is closed below the platform, safe and reliable;

3. The material contact part is made of 316L stainless steel, clean and hygienic, in line with the GMP requirements of drug production;

4. The filling and sealing part is installed in the semi-closed non-static outer frame visual cover above the platform, easy to observe, easy to operate and easy to maintain;

5. Rotary wheel driven by CAM, fast speed, high precision;

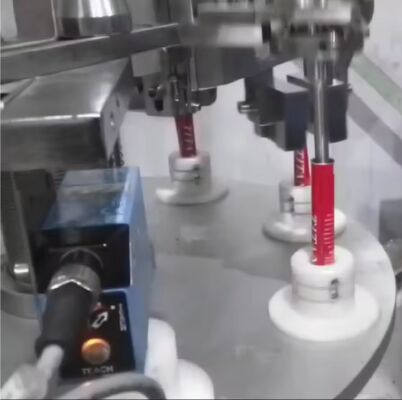

6. Photoelectric calibration workstation, with high-precision probe, stepper motor and other control hose pattern in the correct position;

7. The filling nozzle adopts Japan imported sealing ring to prevent leakage from filling;

8. The tail sealing adopts Leister hot air gun tail for internal heating and external cooling device;

9. The encoding workstation automatically prints the encoding in the position required by the process;

10. Shaping manipulator cut hose tail to a right Angle or rounded corner for choice;

11. No tube does not fill, overload protection function and other safety protection devices;

12. Counting and quantification stop;

13. (Optional) With stirring storage hopper and heating insulation double storage hopper and dust cover.

Specifications

Productivity	20-30pcs/min
Filling volume	5-25ml/15-150ml/30-200ml(adjustable)
Tube diameter	10-50mm(customized)
Tube length	50-200mm(customized)
Filling accuracy	±1%g
Max power	1.5kw
Air pressure	0.6Mpa
Machine weight	~400kg	~600kg
Dimension (LWH)	170010201200mm	10008001600mm
